Network Cabinet

A distinctive, robust Network Cabinet/Server cabinet solution that supports and protects rack-mount servers, storage and network equipment in multi-tenant and enterprise data centers, computer rooms and network facilities.
Online orders

Network Rack 4u 6u 9u 12u 15u 22u 19inch 600*450mm 600*800mm 600*1000mm Wall-Mount Server Cabinet

Specification

1) Standard	Complies with ANSI/EIA RS-31O-D, IEC2972, DIN41491: PART1, DIN41494: PART7,GB/T3047.2-92, ETSI Standard
2) Material	SPCC high-quality cold rolled steel
3) Thickness	Mounting profile 2.0mm
	Mounting angle 1.5mm
	Others 1.2mm
4) Door	Single open mesh front,double mesh back door,Glass front door
5) Surface Finish	Degreasing, Pickling, Phosphating, Powder coating
6) Protection Degree	IP20
7) Loading Capacity	800kgs(=1763 lbs)
8) Color	Optional: Black(RAL9004) White(RAL7035) Grey(RAL7032)
Features
1) Zinc Plated mounting profile
2) Secure,firm and reliable
3) Easy to maintain equipment
4) Two Packing Ways:
Assembly packing to save labour cost, ready to resell or use
Disassembly packing to save space and transport cost, easy to assemble
5) Various optional accessories: PDU, fan, shelf, bracket, cable tray, etc..
6) Certification: ISO 9001:2000
7) OEM/ODM service available

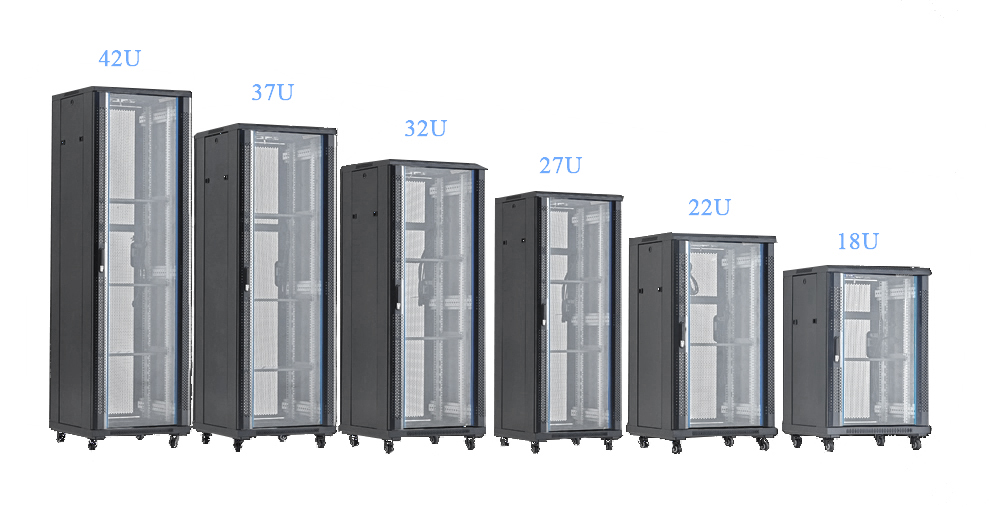

Network Cabinet Dimension (or customized size)
Capacity	42U	37U	32U	27U	22U	18U
Height	2M	1.8M	1.6M	1.4M	1.2M	1.0M
L*W	600x600mm	600x600mm	600x600mm	600x600mm	600x600mm	600x600mm
	600x800mm	600x800mm	600x800mm	600x800mm	600x800mm	600x800mm
	600x1000mm	600x1000mm	600x1000mm	600x1000mm	600x1000mm	600x1000mm
Capacity	15U	12U	9U	6U	4U
Height	769mm	635mm	501mm	368mm	280mm
L*W	600x450mm	600x450mm	600x450mm	600x450mm	600x450mm
L*W	600x600mm	600x600mm	600x600mm	600x600mm	600x600mm
