Fiber optic Accessories

  • ABS box type PLC Splitter

ABS box type PLC Splitter

  • PLC splitter is an optical power distribution device based on the integrated waveguide of quartz plate. With
the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s
widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve
the signal splitter.
PLC Splitter family has 1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32,2
x 64 PLC splitter, with specifications that are tailored for different applications and markets. Widebandwidth, compact size. All products meets, ROHS, GR-1209-CORE-2001 and GR-1221-CORE-1999.


  • Online orders

    • Trochi supply 3 types PLC splitter show as belows:


    plug-in type optical fiber PLC splitter 1:2 1:4 1:8 1:16 1:32 1:64 with adaptorplug-in type optical fiber PLC splitter 1:2 1:4 1:8 1:16 1:32 1:64 with adaptor

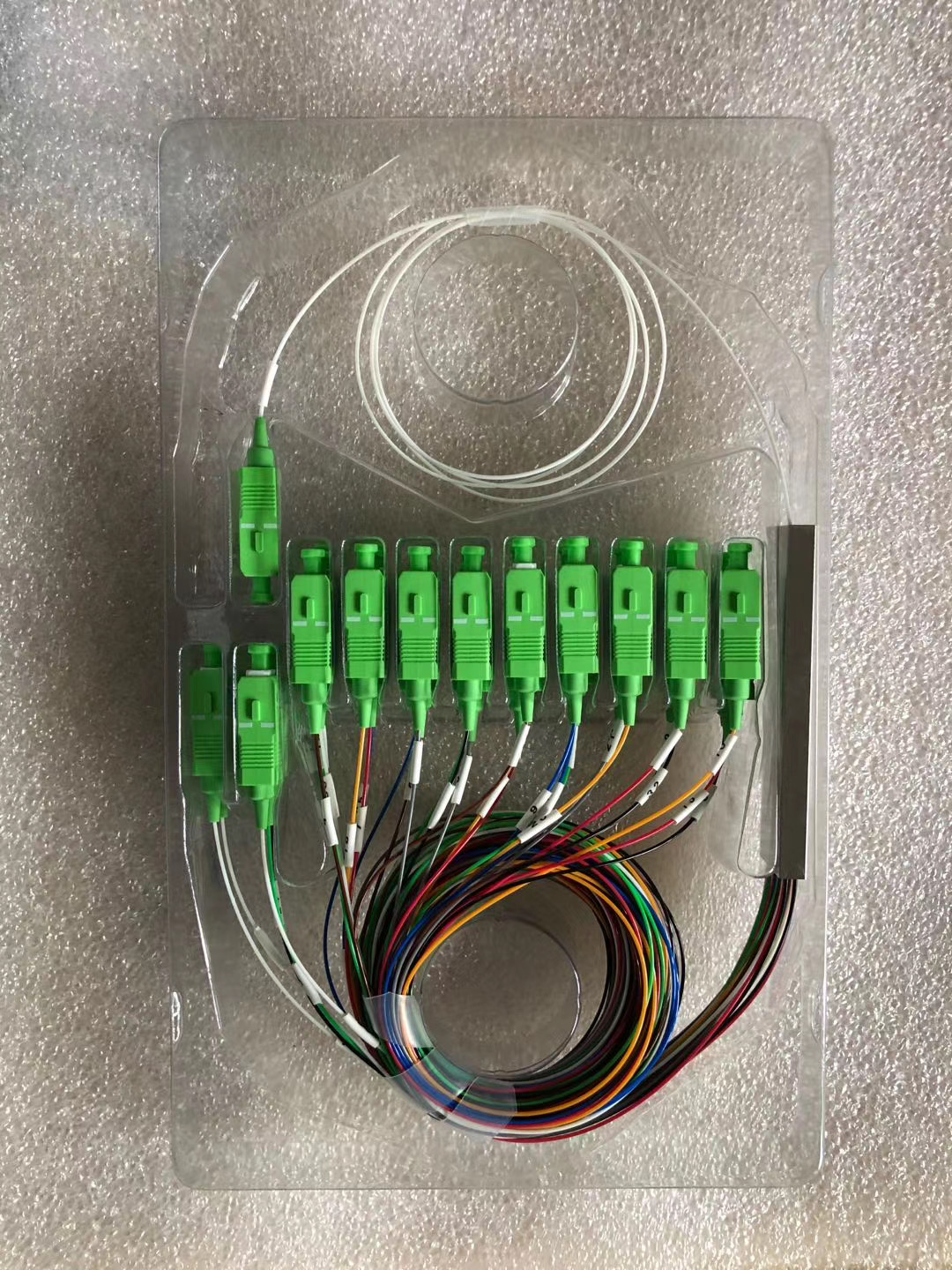

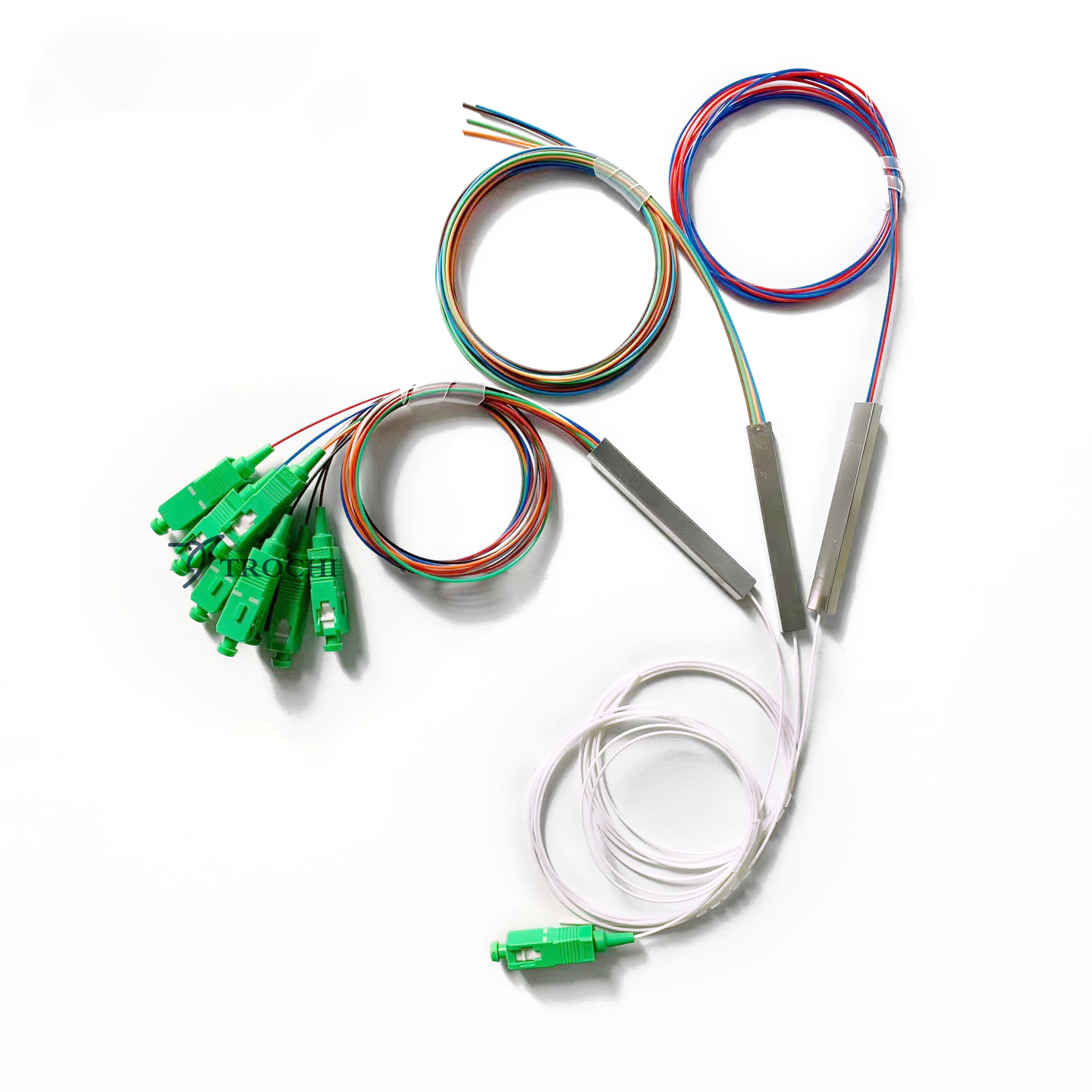

                        Plug-in / Cassette type                                          Mini steel tube type

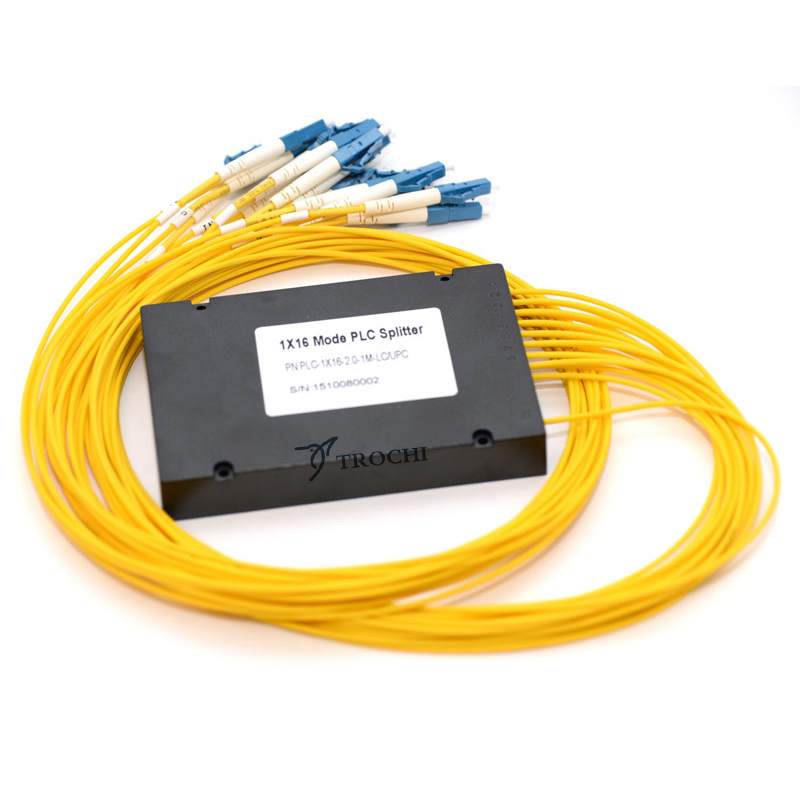

    plug-in type optical fiber PLC splitter 1:2 1:4 1:8 1:16 1:32 1:64 with adaptorABS box type
    Table 1 – 1×N PLC Splitter

    Parameters

    1×2

    1×4

    1×8

    1×16

    1×32

    1×64

    1×128

    Operating Wavelength (nm)

    1260~1650

    Fiber Type

    G657A1 or customer specified

    Insertion Loss (dB)(P/S Grade)

     3.8/4.0

     7.1/7.3

    10.2/10.5

    13.5/13.7

    17/17.4

    20./20.4

    23.8/24.2

    Return Loss (dB) (P/S Grade)

    55/50

    55/50

    55/50

    55/50

    55/50

    55/50

    55/50

    Operating Temperature (℃)

    -40~85

    Storage Temperature (℃)

    -40~85







    Table 2 – 2×N PLC Splitter

    Parameters

    2×2

    2×4

    2×8

    2×16

    2×32

    2×64

    2×128

    Operating Wavelength (nm)

    1260~1650

    Fiber Type

    G657A1 or customer specified

    Insertion Loss (dB)(P/S Grade)

     4.0

     7.6

     11.0

    14.4

    17.5

    21.0

    24.5

    Return Loss (dB) (P/S Grade)

    55/50

    55/50

    55/50

    55/50

    55/50

    55/50

    55/50

    Temperature Stability (-40~85 ℃)(dB)

    0.4

    0.4

    0.4

    0.5

    0.5

    0.5

    0.5

    Operating Temperature (℃)

    -40~85

    Storage Temperature (℃)

    -40~85



    Connector type SC/LC/FC/ST optional

    Notes:

    1. Specified without connectors.

    2. Add an additional 0.15dB loss per connector.





    Packaging & Shipping

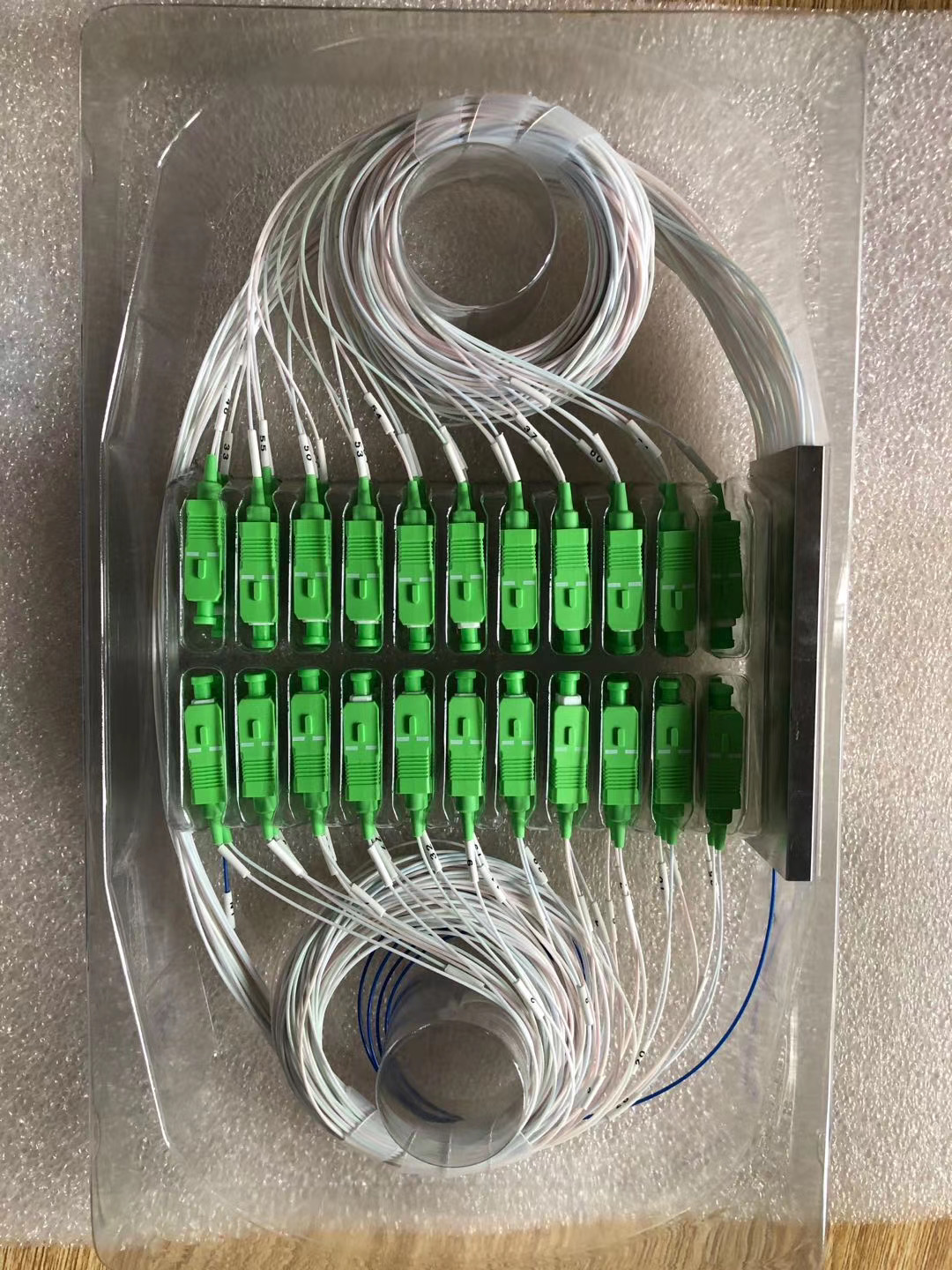

    Packing:  outer package:  Carton     Inner package: Blister box
    Shipping:  By air or sea as required.
     plug-in type optical fiber PLC splitter 1:2 1:4 1:8 1:16 1:32 1:64 with adaptor                plug-in type optical fiber PLC splitter 1:2 1:4 1:8 1:16 1:32 1:64 with adaptor

              1*32 ABS type PLC splitter                                                                      1*8 plug-in typ PLC splitter
    plug-in type optical fiber PLC splitter 1:2 1:4 1:8 1:16 1:32 1:64 with adaptorplug-in type optical fiber PLC splitter 1:2 1:4 1:8 1:16 1:32 1:64 with adaptor
                  2*32  steel tube type PLC splitter                                               2*64 PLC splitter without connector
    plug-in type optical fiber PLC splitter 1:2 1:4 1:8 1:16 1:32 1:64 with adaptorplug-in type optical fiber PLC splitter 1:2 1:4 1:8 1:16 1:32 1:64 with adaptor
                                    1*32 PLC splitter                                                            1*64 PLC splitter
