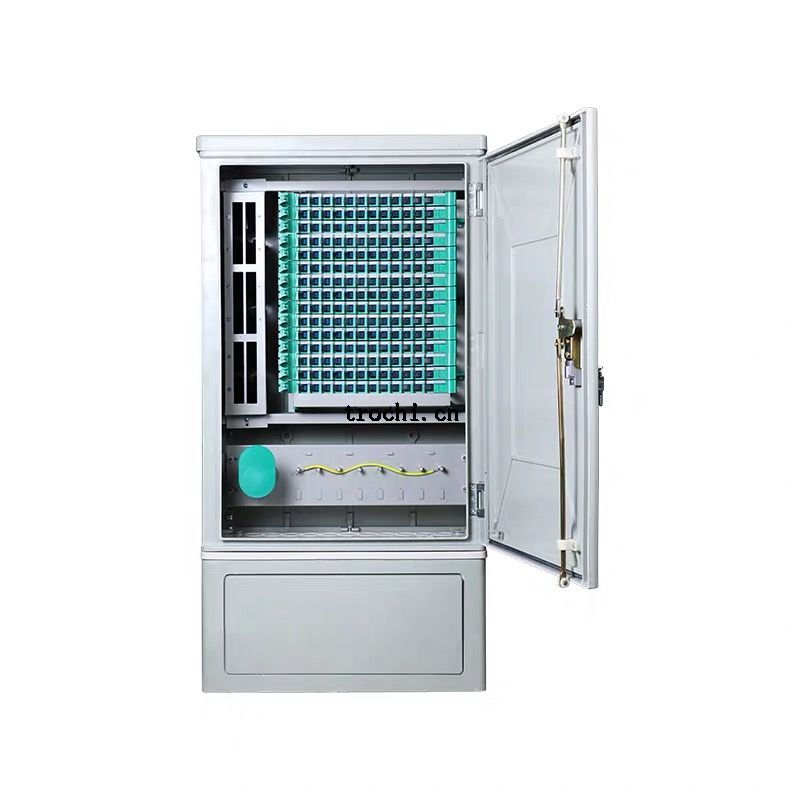

Outdoor street Fiber distribution cabinet

Fiber distribution cabinet is used outdoors trunk interface device connecting to the cable and distribution cable,and can provide the connection between backbone cables and wiring cable.It can achieve a direct connection and cross-connect between the trunk cable and wiring cable with the function of cable fixing,the connection of metal components and high-voltage protection grounding devices,the protection of optical fiber connector,savings and distribution of the remaining long fiber.
Online orders

Feature:

1,SMC material used ensures the body strong and light.
2,Embedded the wall design for outdoor uses.
3,Easy installations: Ready for wall mount – installation kits provided
3,Adapter slots used – No screws and tools needed for installing adapters.
4,Ready for splitters: designed space for adding splitters.
5,Space saving! easier installation and maintenances
6,Lower layer for splitters and over length fiber storage.
7,Upper layer for splicing, cross-connecting and fiber distribution.
8,Accommodates both cable glands as well as tie-wraps
9,Lock provided for extra security

Specification:

Product name	outdoor optical distribution cabinet	Fiber count	144~576 core
Fiber connector	SC/FC/LC/ST	Size	96/144 core 1035550308mm 288 core 1460750320mm 576 core 1460750540mm
Temperature	-40℃~60℃	material	SMC
Atmospheric pressure	70kpa-106kpa	Protection grade	IP65
Mechanical Durability Test	≥1000 times	Features	wet-proof,water-proof
