Fiber optic Accessories

  • ODF

ODF

  • Rack mounted ODF optical fiberdistribution frame is designed for fiber connection and distribution of backbone fiber cable; it is suitable for fiber splicing, storage and protection. Their standard 19 inches width make them compatible to standard optical distribution frame with 19 inches width.

  • Online orders

Feature:

1,It can fix the optic cable and protect the connection between cables and pigtails.
2,The box is unique structure, reasonable layout. It’s easy installation and convenient maintenance.
3,There is clear identification. Easy for transfer, jumper and test.

4,Standard size, light weight and reasonable structure.
5,Splice tray inside changeable.
6,Can be used in 19''standard distribution frame.
7,Suitable for ribbon and single fiber.
8,Various panel plate to fit different adapter interface.
9,Front mark on the plate is easy for identification and operation.
10,12C,24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters.
11,Easy for management and operation.

12C,24C, 36C, 48C, 72C optional

Hot sale 12/24/48/72/96/144 Port ODF SC/FC/LC/ST 19inch rack mount fiber optical distribution frameHot sale 12/24/48/72/96/144 Port ODF SC/FC/LC/ST 19inch rack mount fiber optical distribution frameHot sale 12/24/48/72/96/144 Port ODF SC/FC/LC/ST 19inch rack mount fiber optical distribution frameHot sale 12/24/48/72/96/144 Port ODF SC/FC/LC/ST 19inch rack mount fiber optical distribution frameHot sale 12/24/48/72/96/144 Port ODF SC/FC/LC/ST 19inch rack mount fiber optical distribution frameHot sale 12/24/48/72/96/144 Port ODF SC/FC/LC/ST 19inch rack mount fiber optical distribution frameHot sale 12/24/48/72/96/144 Port ODF SC/FC/LC/ST 19inch rack mount fiber optical distribution frame

Specification:



Product name

optical distribution frame

fiber type

SM/MM

Fiber count

12/24/48/72/96/144 core

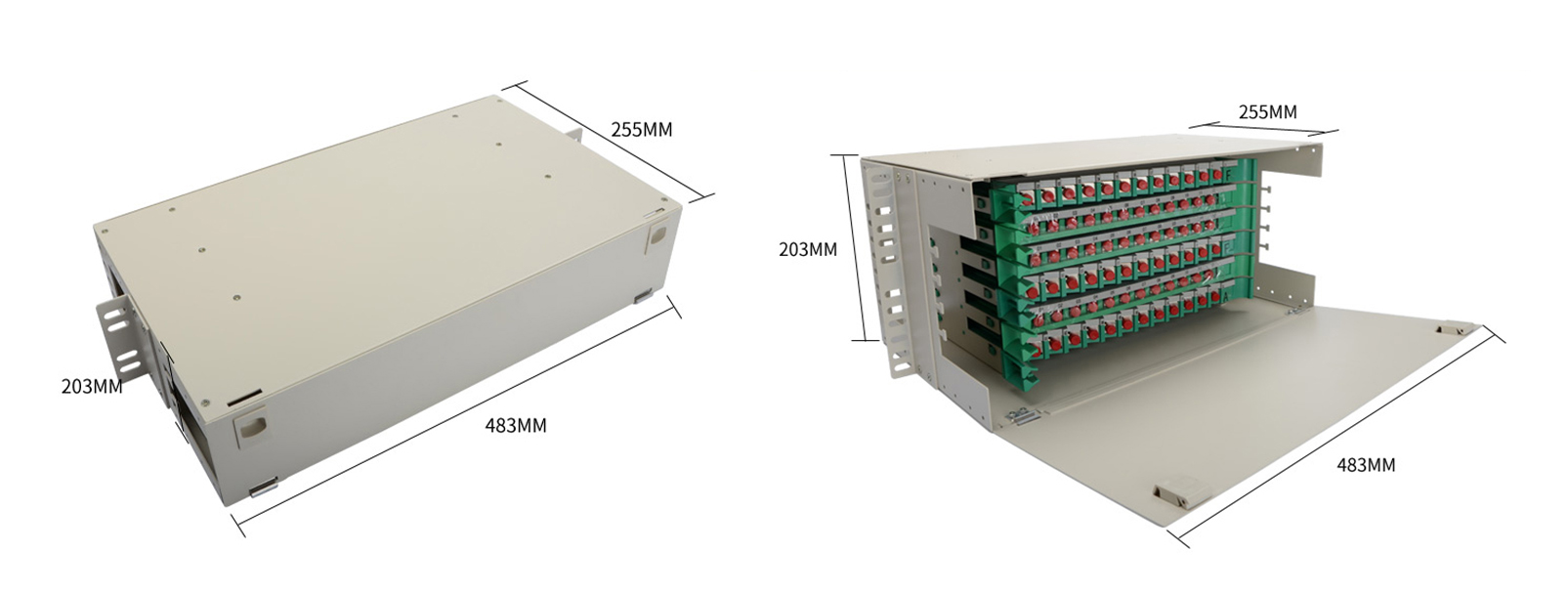

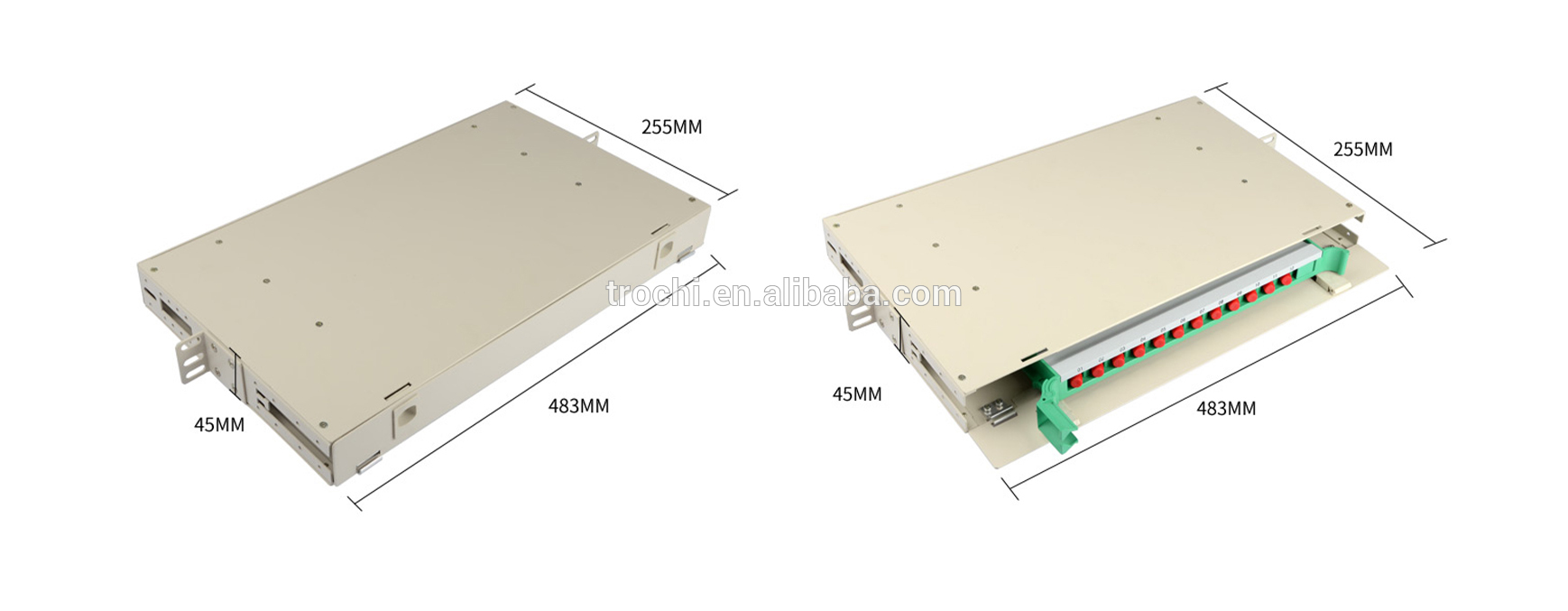

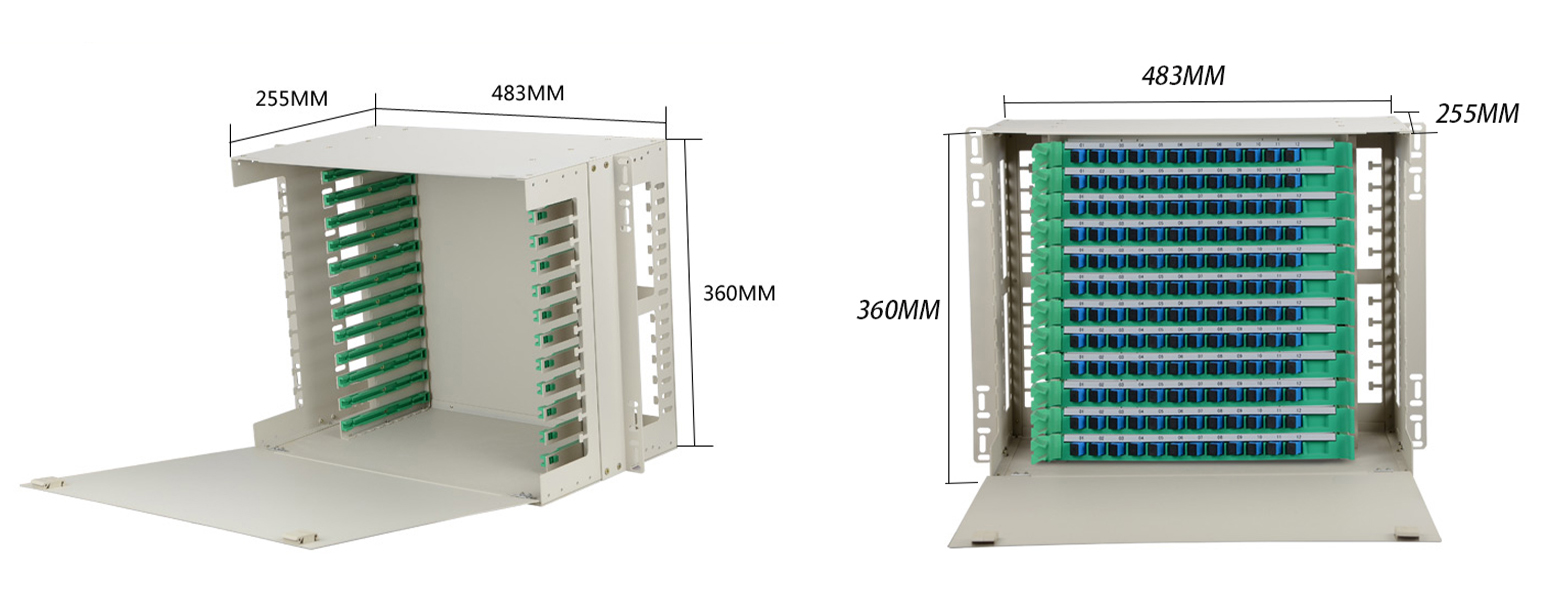

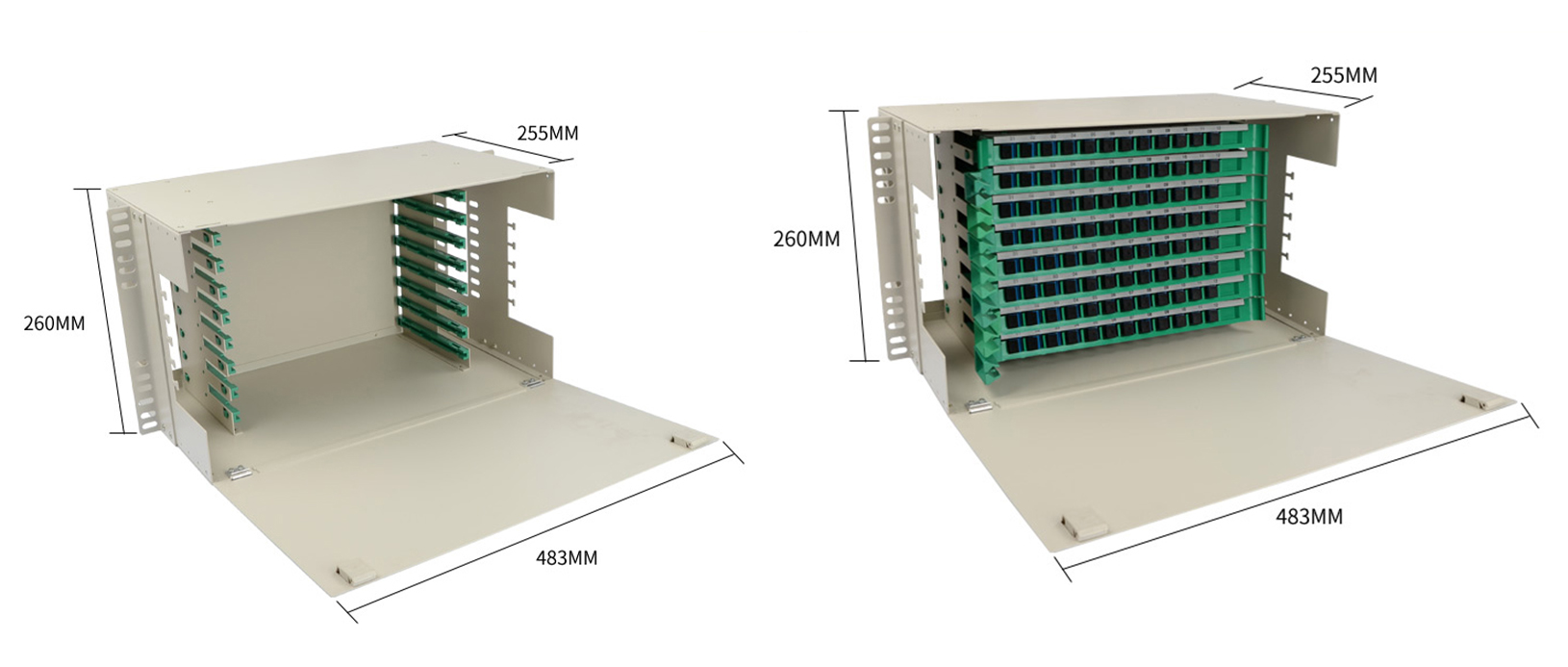

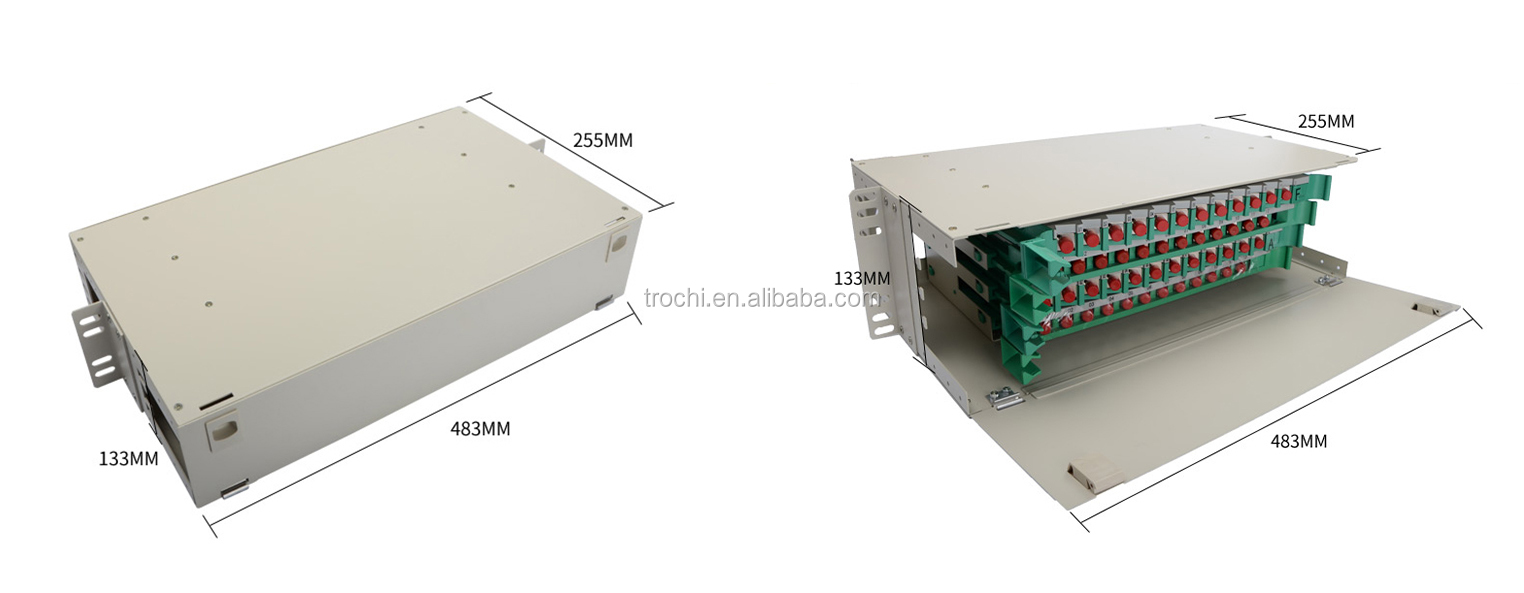

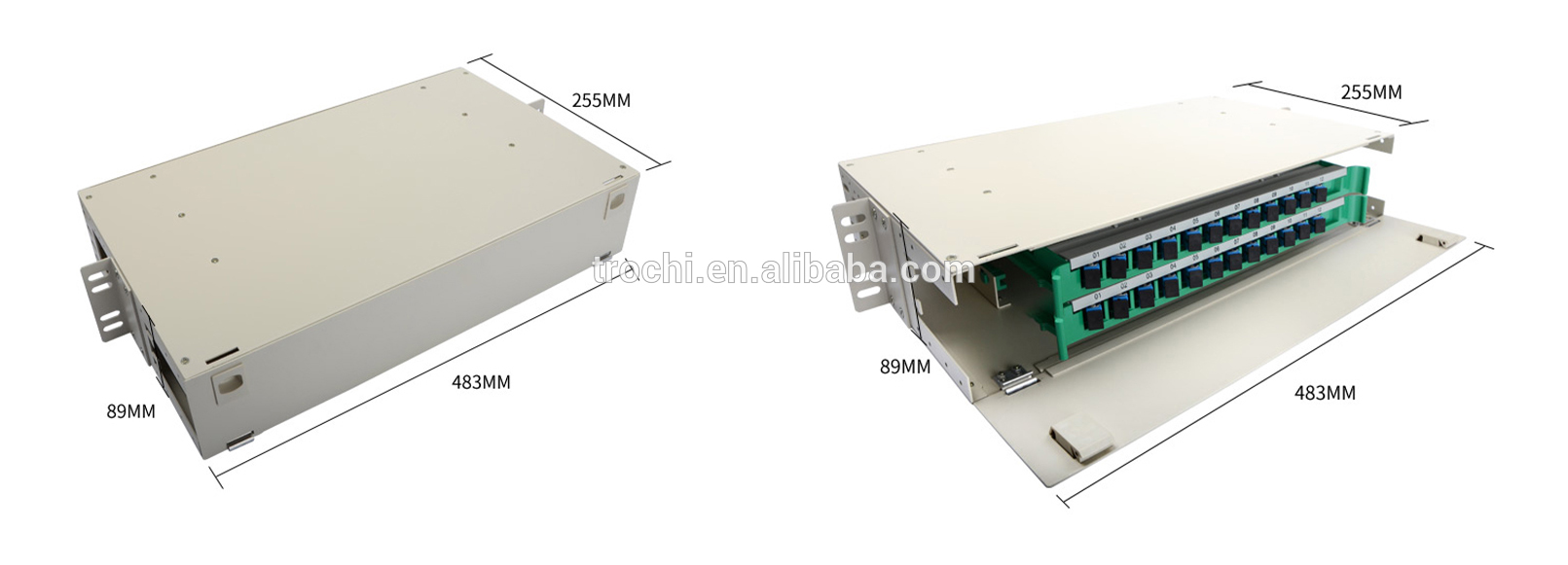

Size

as picture

Fiber connector

SC/FC/LC/ST

Weight4.8~15.5kg
 Application

Rack mount indoor type.

use in 19 inch cabinet

Relative humidity≤95%(+40℃)

Temperature

-40℃~60℃

Atmosphere pressure70Kpa-106Kpa

Accessory

Empty box, splice tray,  adapter, 12-core pigtail.
