Fiber optic Accessories

  • Fiber optic patch cord

Fiber optic patch cord

  • Fiber Optic Patch cords are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration .Extensive range of fiber patch cables are terminated with state-of-the-art connectors and available in any combination of ST, SC, LC,and ST with UPC or APC polish types to meet your standard or custom configurations.

  • Online orders

fiber patch cord (1)(1)1.jpg

Features:

1. Low insertion loss;

2. Good repeatability;

3. Large return loss;

4. Good inter-insertion performance;

5. Good temperature stability;

6. Strong tensile performance.


Parameter:

Connector Type
SC/ST/FC/LC
Polish Type
UPC/APC
Fiber Mode
OS2 9/125μm
Wavelength
1310/1550nm
Insertion Loss
≤0.3dB
Return Loss
≥50dB
Fiber Grade
G.657.A1,G.657A2,G.652.D
Minimum Bend Radius
10mm
Attenuation at 1310 nm
0.36 dB/km
Attenuation at 1550 nm
0.22 dB/km
Fiber Count
Simplex/duplex
Cable Diameter
2.0mm /3.0mm
Cable Jacket
PVC/LSZH
Polarity
A(Tx) to B(Rx)
Operating Temperature
-40℃~+80℃
Storage Temperature
-45℃~+85℃

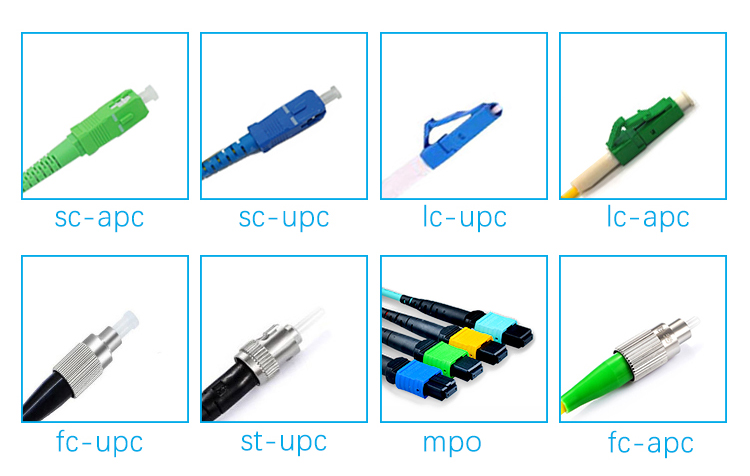

Connector type:

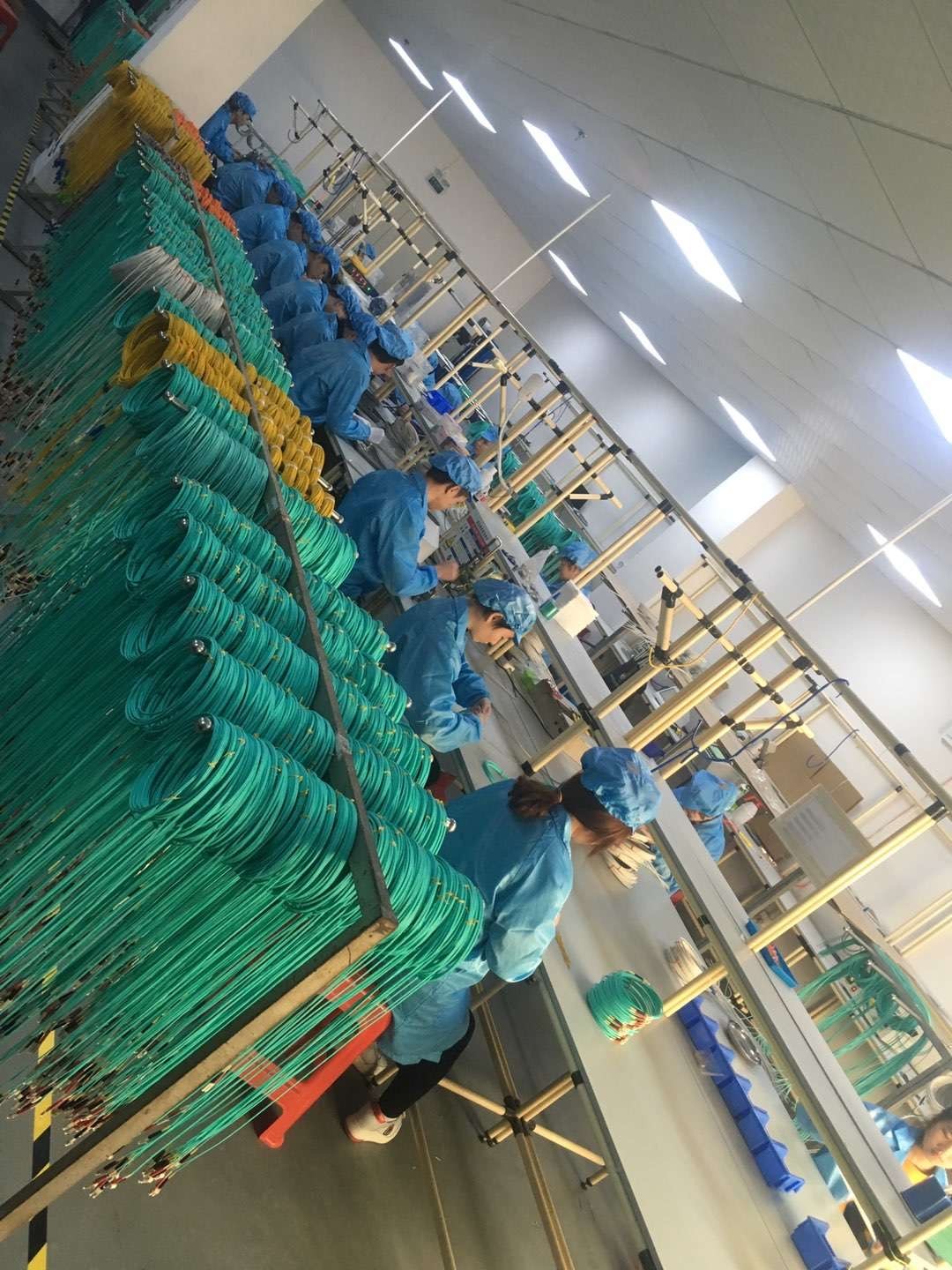

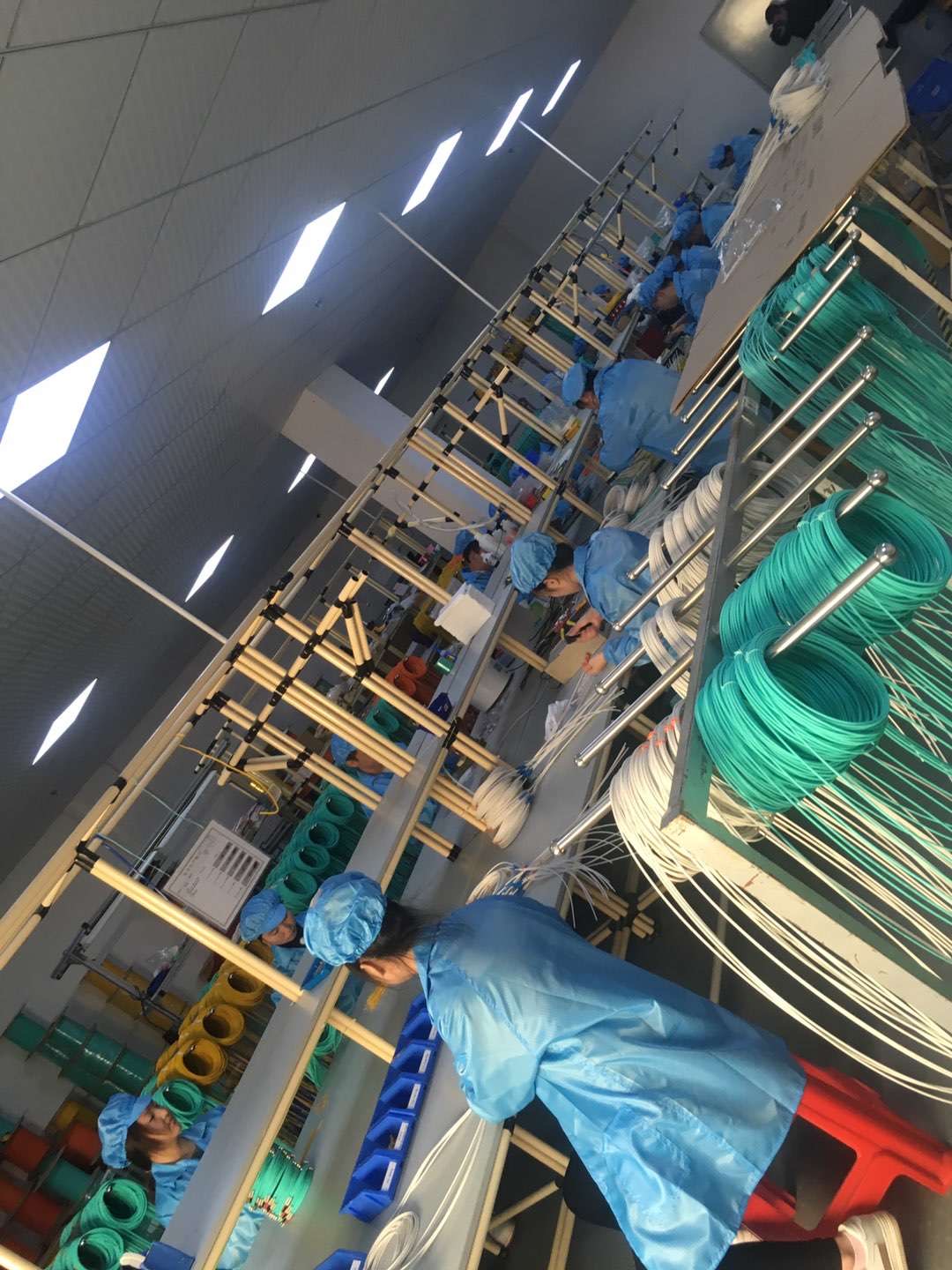

Factory View:

2020-04-20 152350.jpg


fiber patch cord (1)(1)1.jpg
