aerial figure-8 fiber optic cable

GYTC8S is a typical self-supporting outdoor aerial fiber optical cable. The metal strength member is made up of stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Corrugated steel tape armored and PE outer sheath providing crush resistance and gun shot resistance features. The steel-wire strength member as the central strength improves the tensile strength and it is surrounded by the loose tube and water blocking system. It's suitable for installation in aerial, used for long distance and LAN communication systems.
Online orders

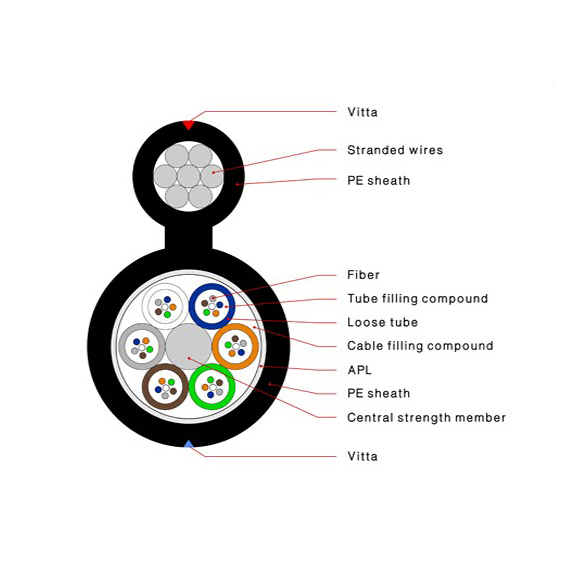

Structure Crossection View:

12/24/48/72/96/144 core figure-8 fiber optic cable GYTC8S for aerial application

Features and Benefits:

•Small cable diameter, cross section shows figure 8

•Self-supporting stranded wires, easily to install

•Low dispersion and attenuation

•Excellent mechanical and environmental performance

•Water blocking system to improve the water proof ability

•Steel-wire strength member ensures tensile strength

•Corrugated steel tape and the PE outer sheath ensure crush resistance

Parameter:

customized parameter were accepted!

Cable Type	Self-supporting Outdoor aerial	Fiber Count	12/24/48/72/96/144 core
Construction	Stranded Loose Tube	Fiber Type	Singlemode G.652D
Inner/Outer Jacket Material	PE(Black)	Strength Member Material	Steel Wire
Messenger wire Diameter	2.4(7*0.8)	Cable Diameter	4.5*9.5mm
Armor Layer	Corrugated Steel Tape	Application	Aerial
Tensile Strength(long/short term)	3000/5000N	Crush Load(long/short term)	500/1500(N/100mm)
Bending Radius(long/short term)	10D/20D(mm)	Operating/Storage Temperature	-40 to +60°C
