Fiber optic cable

  • air-blown fiber optic cable

air-blown fiber optic cable

  • Micro duct air blowing fiber optic cable GCYFY is featured with small diameter, light weight, low friction, excellent softness and high fiber density, which can imporve the laying efficiency and save construction cost. it is comprised of outside plant (OSP) loose tube fiber optic cables that are optimized for air-jetting into single or bundled micro-duct pathways.  The product is constructed using gel-filled buffer tubes that are SZ-stranded around a central strength with an overall outer HDPE jacket. The fiber count is available with 12-fibers up to 432-fibers.

  • Online orders

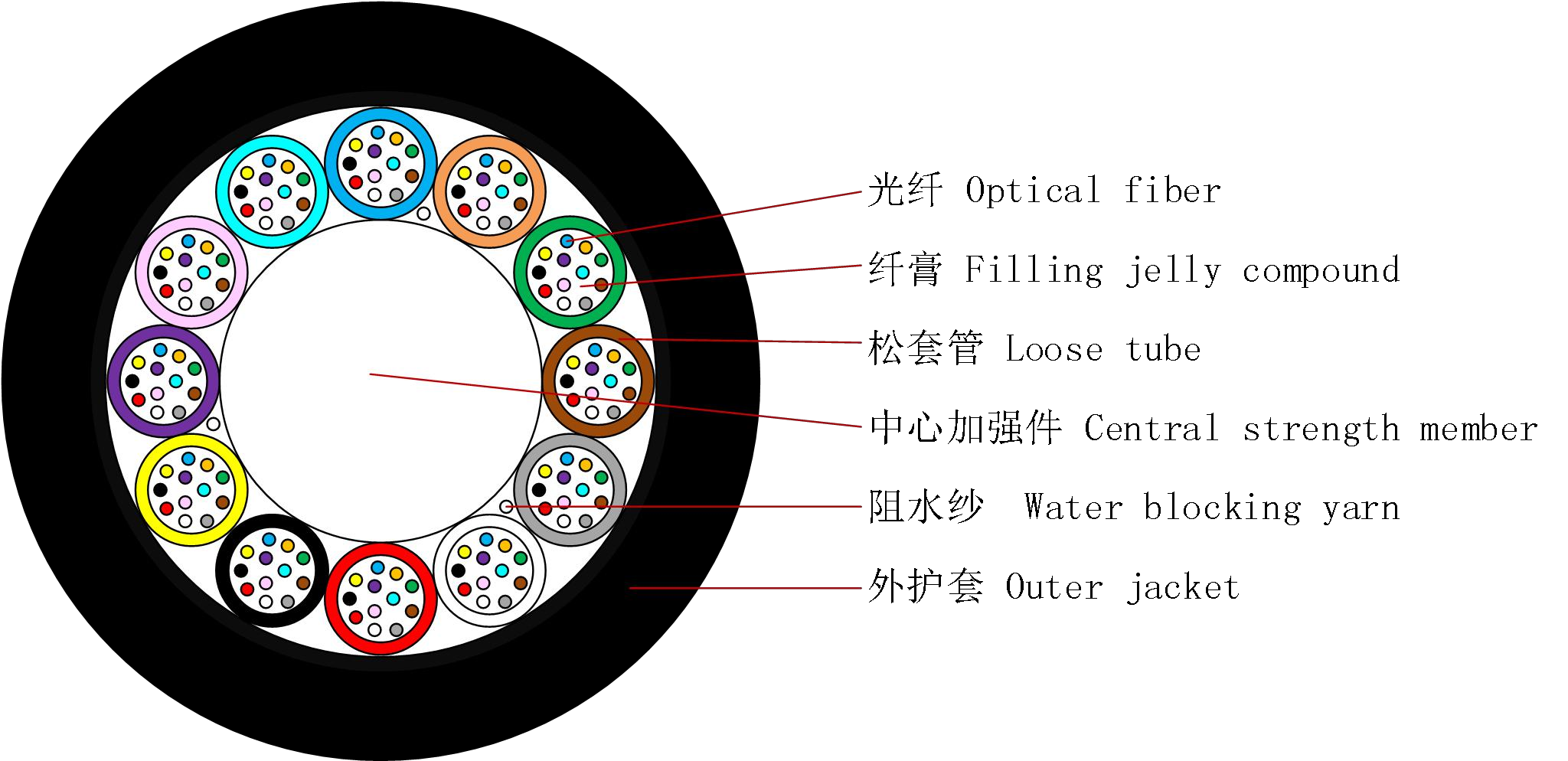

Structure Crossection View:



          12F 24F 48F 96F 144F air blown micro fiber optic cable GCYFY for microduct



Features and Benefits:

 Optimum cable structure, high fibre density.

 Accurate fibre length balance, ensure stable performance.

 No gel in cable core for water blocking, low carbon and environmental.

 Structure Innovation in sheath, enhancing the blowing performance.



Parameter:

Cable Type

Layer Cable

Fibre Count

12

24

36

48

60

72

96

144

Number of loose tube

1

2

3

4

5

6

8

12

Number of filled string

5

4

3

2

1

0

0

0

Number of fiber/tube

12

 Water blocking method

FRP or PE Lining

Water Blocking yarn


Cable Core

Water Blocking yarn

Thickness of HDPE sheath

Nominal: 0.50mm, Average: 0.45mm, Minimum: 0.40mm

Overall Diameter

5.6±0.1 mm

6.4±0.1 mm

7.8±0.1 mm

Weight

27 kg/km

40 kg/km

55 kg/km

Max. Tensile Strength

500N

1000N

1000N

Max. Crushing Resistance

800N/100mm

Min. Bending radius -Static

12 outer Φ

Min. Bending radius -Dynamic

20 outer Φ

Cable Fiber Attenuation (single mode)

0.35dB/km max @1310nm 0.22dB/km max @1550nm

Temperature range

Storage -40~+70℃; Installation -10~+40℃; Operation -40~+70

Cable service life (estimate value)

25 years



Application:

• CATV

• Local trunk line

• Rural communication

• Computer networks system

• Conduit/duct application
