Galvanized steel armored fiber optic cable GYTA33

GYTA33 fiber optic cable is an outdoor communication optical cable of metallic strength member of the loose tube jelly-filled structure, with Al-polyethylene laminated sheath and single-layer thin round steel wire armored polyethylene outer sheath.

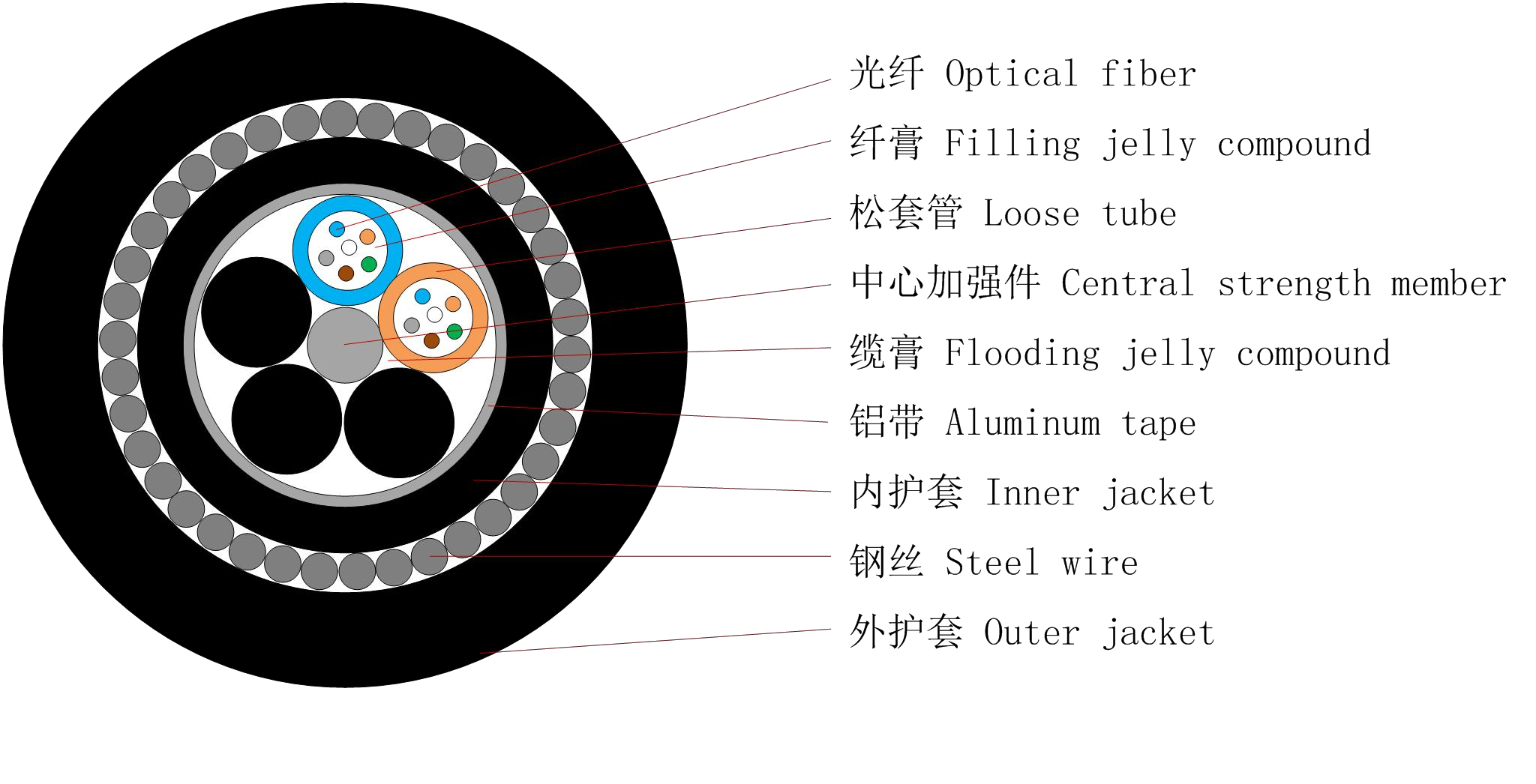

The loose tubes are made of high modulus plastics (PBT) and filled withwater resistant filling gel. Loose tubes are stranded around the metallic central strength member, cable core is filled with cable filling compound.The corrugated aluminum tape is longitudinally applied over the cable core,and combined with polyethylene (PE) inner sheath. Galvanized steel wires are stranded around inner sheath, and then extruded with PE outer sheath.
Online orders

4 6 8 12 24 48 72 96 144 core steel wire armored submarine fiber optic cable GYTA33 GYTA333

Features and Benefits:

•High quality optical fiber provides good transmission performance

•Accurate fiber excess length control ensures excellent mechanical and temperature performance

•Special filling gel filled loose tubes provide perfect optical fiber protection

•All section water blocking ensure the cable core reliable performance of moisture-proof and water block

•Corrosion resistance phosphated steel wire with high Young's modulus as central strength member givesdesirable tensile strength

•Longitudinally Armor with both side coated aluminum tape and stranded steel wires armoring meet therequirements of •high crush resistance, tensile strength, bulletproof property, heavy duty direct buryunderwater installation

•Strict craft and raw material control enable lifespan over 30 years

Application:

•Outdoor underwater & underground application

•Used for long-haul communication

•Used for LAN communication

•Subscriber network systems

•Junction communication systems

•CATV & Computer networks system

Parameter:

Cable Type	GYTA33	Fiber Count	12/24/48/72/96/144 core
Construction	Stranded Loose Tube	Fiber Type	Singlemode G.652D
Inner/Outer Jacket Material	PE(Black)	Strength Member Material	Steel Wire
Armoured Layer 1	Plastic coated aluminum tape	Cable Diameter	13.0~19.4 mm
Armor Layer 2	Galvanized steel wire	Application	underwater/underground
Tensile Strength (short term)	10000N	Crush Load(long/short term)	5000(N/100mm)
Bending Radius(long/short term)	12.5D/25D(mm)	Operating/Storage Temperature	-40 to +60°C
