Fiber optic cable

  • double armored fiber optic cable GYTA53

double armored fiber optic cable GYTA53

  • GYTA53 uses metal strength member as central strength member to provide excellent strain performance of the cable. Double jacket structure provide the cable nice properties of moisture resistance and crush resistance. Double armor structure provides cable good property of rodent-resistance. A layer of water-blocking material is applied around the cable core to prevent water ingress. It can be used for duct and direct buried application.

  • Online orders

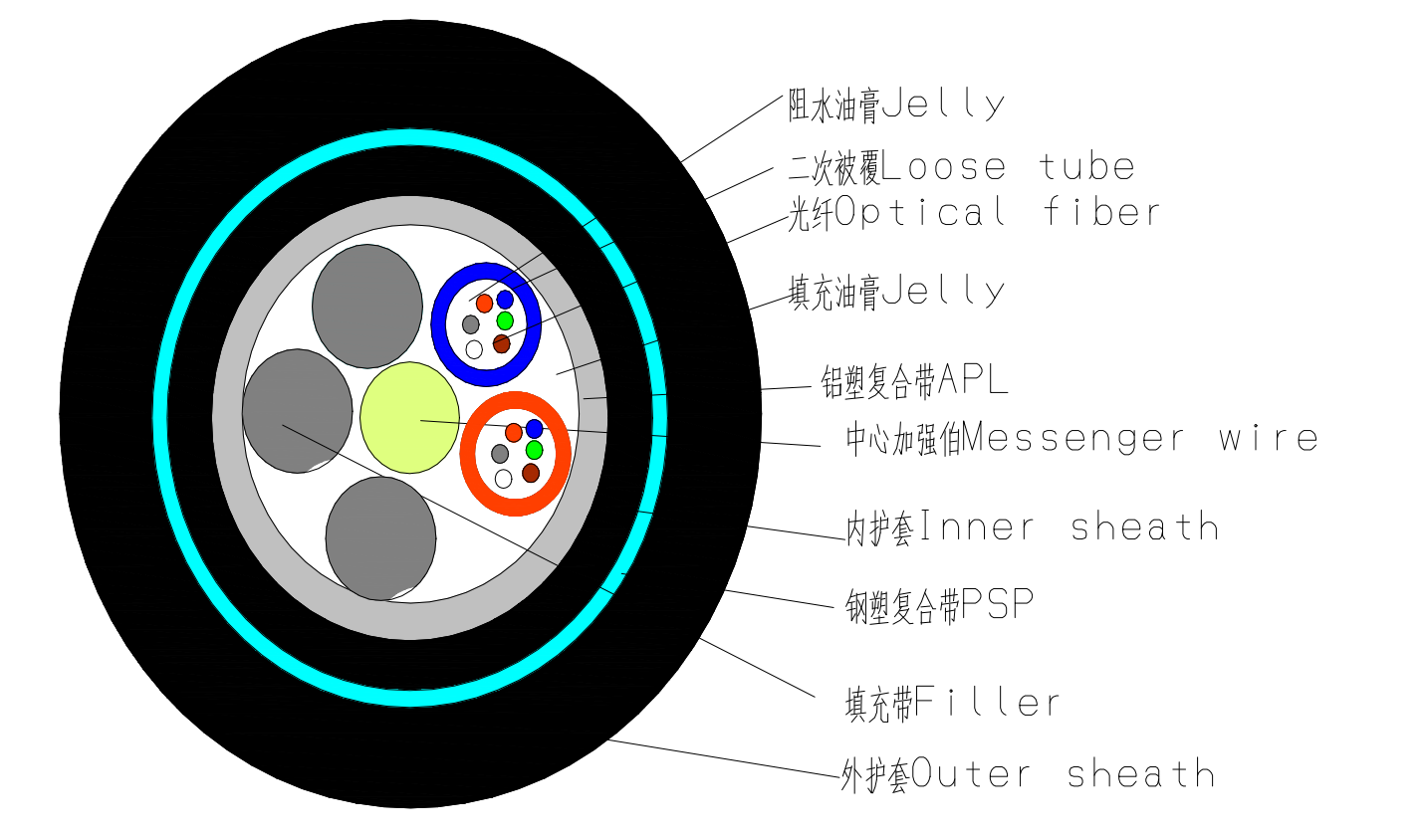

Structure Crossection View:

                      24 core double armored fiber optic cable GYTA53 price per meter



Features and Benefits:



• Good mechanical and temperature performance
• Stranded loose tube improves the tensile strength
• Metal strength member provides excellent strain performance
• Double-jacket structure enusres moisture resistance and crush resistance
• Steel tape and aluminum tape enhances water-blocking & moisture-proof performance PE or AT sheath ensures safety of cable in high voltage environment





Application:

• Used for duct and buried laying method
• Adopted to outdoor distribution
• Specially used where good mechanical performance and rodent resistance are expected





Parameter:

Fiber count

12

24

36

48

72

96

144

Max. No of loose tube / filler No.

 1/4

 2/3

2/1

2

6/0

8/0

12/0

Fiber No. per tube

12

12

12

12

12

12

12

Loose tube diameter

2.1mm

2.1mm

2.1mm

2.1mm

2.1m

2.1m

2.1mm

Central  strength  member diamter

1.4mm

1.4m

1.4mm

1.4mm

2.1m

2.1+

2.1

Fiber type

G652D single mode

Outer  sheath Material

PE

Water blocking

Gel

Cable OD mm

12.5

15.0


Operation temperature range

-40 ℃ to + 70 ℃

Installation temperature range

-40 ℃ to + 70 ℃

Transport  and  storage temperature range

-40 ℃ to + 70 ℃

Allowable Tensile Load(N)

Short term:3000

Long term:1000

Crush resistance

Short term 3000 N/100mm

Long term :1000N/100mm

Minima l installation  bending radius

25 x OD

Minimal  operation  bending radius

12.5 x OD
