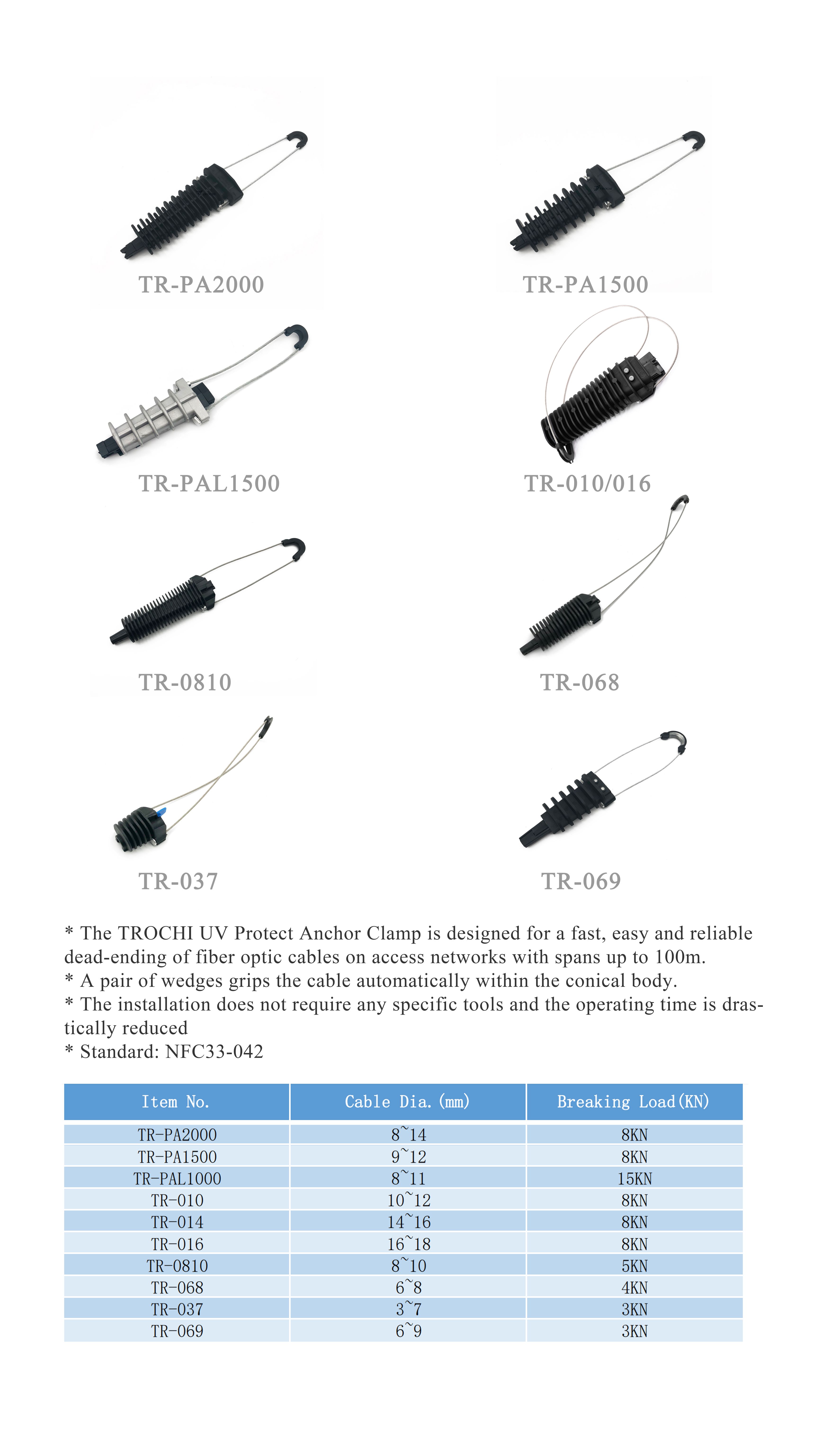

Low voltage Overhead Line Fitting plastic Anchoring clamp with stainless steel rope for optical fiber cables type ADSS, Automatic conical tightening. Opening bail easy to be installed.
All the parts secured together.
Standard: NFC33-042.
Material
Clamp body made of weather and UV resistance Polymer or aluminum alloy body with polymer wedge core.
Adjustable link made of hot dip galvanized steel(FA) or stainless steel(SS).
Features
A pair of wedges grips the cable automatically within the conical body.
The installation does not require any specific tools and the operating time is drastically reduced.

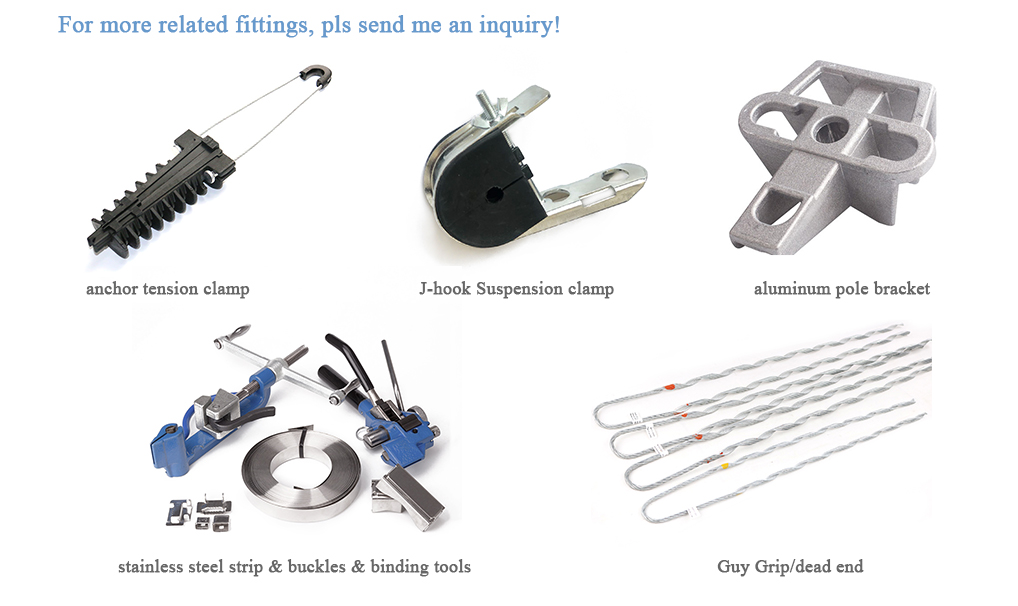

| Item | Type | Applicable cable diameter | Breaking Load | Application |
| Tension clamp | PA2000 | 8-14mm | 8KN | for ADSS fiber optic cable |
| Universal pole bracket | UPB | / | 10KN | |
| Suspension clamp | J-HOOK | 5-8mm 8-12mm 10-15mm | 4KN/10KN | |
| Stainless steel band & buckles | SS201 | size:19*0.7mm | ||
| For more type, pls send me inquiry! or find the contacts at the bottom of this page! | ||||
Application

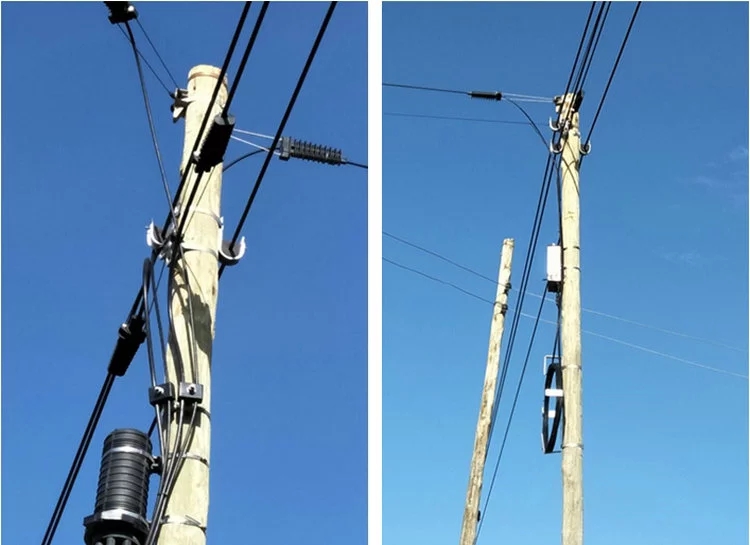

For aerial fiber optic cable fitting within 100m span.

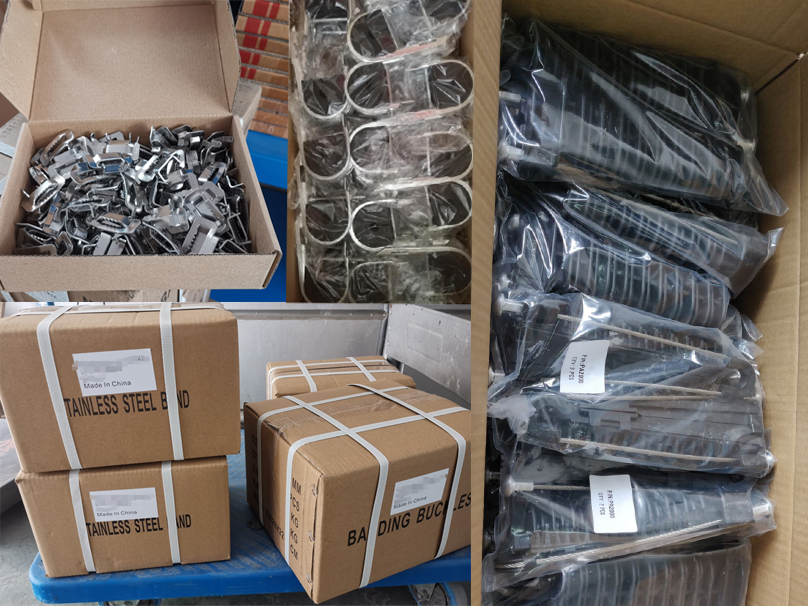

Packing:
