OPGW fiber optic cable

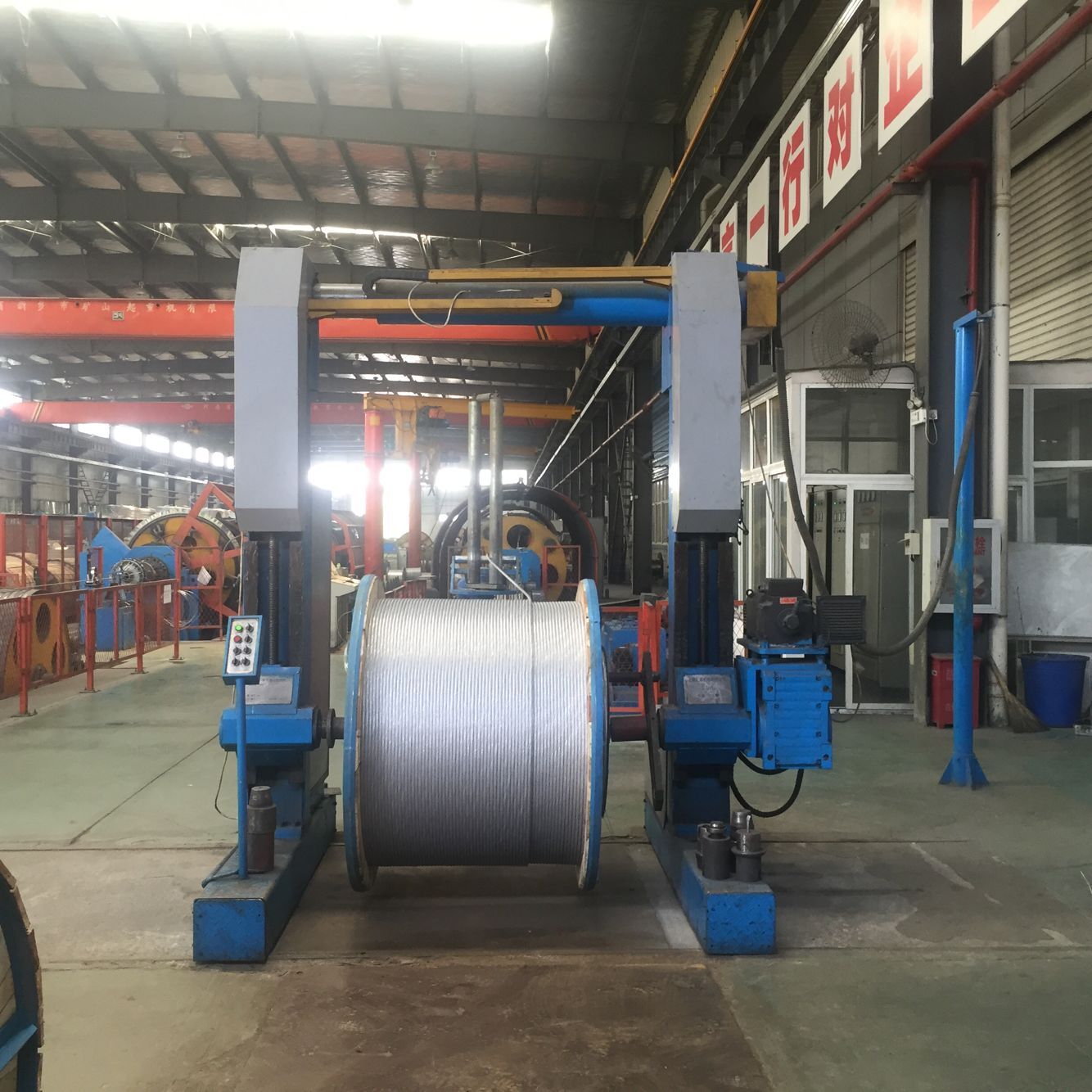

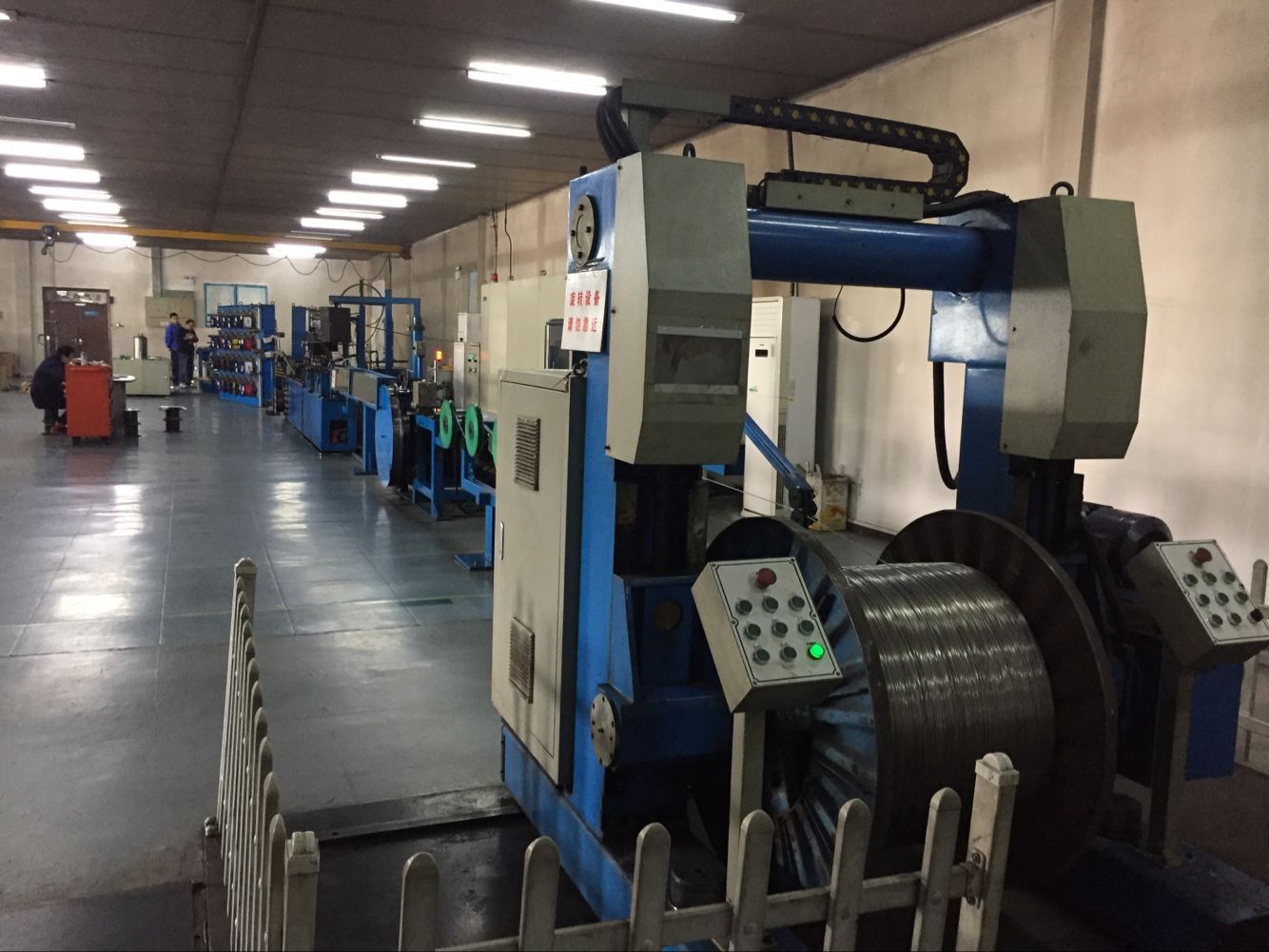

The Stranded Optical Ground Wire (OPGW) is stranded by double or three layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires,its design is fully adapted to the most common electric line needs.
Online orders

Stranded Optical Ground Wire (OPGW)

Characteristic:
1.High quality standards for designing, testing and producing with grade A materials available to ensure
long-term reliability .
2 Engineering support supervising and providing its own line of accessories hardware .
3.larger tensile strength and fault current capacity to reach a better balance of electrical and
mechanical performance.

Advantages of OPGW fiber optic cable:
1. Three typical designs: central tube,stranded wire,PBT loose tube;
2. 200km OPGW cable regular production time about 20 days;
3. Type test including salt corrosion,suitable in harsh corrosive environment,especially near the sea.

Structure:

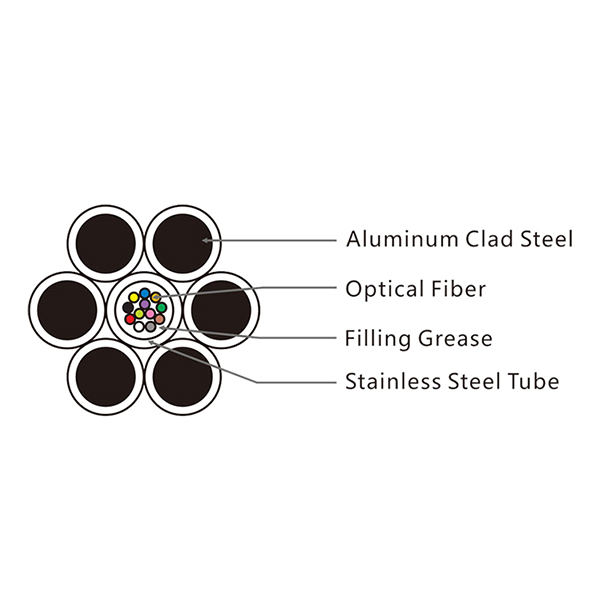

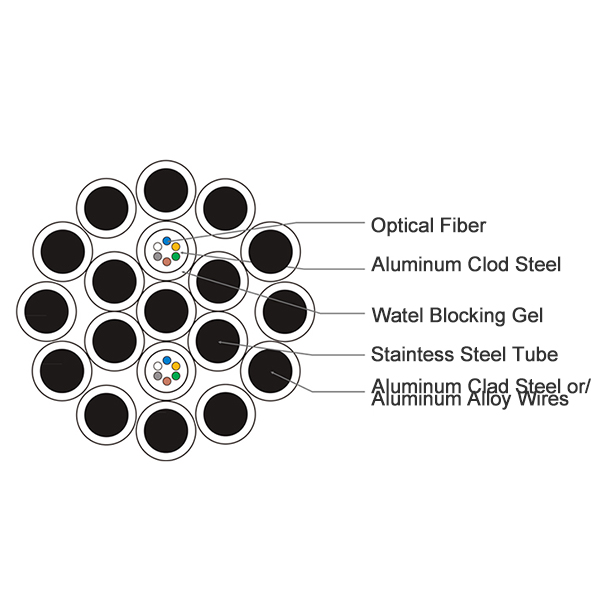

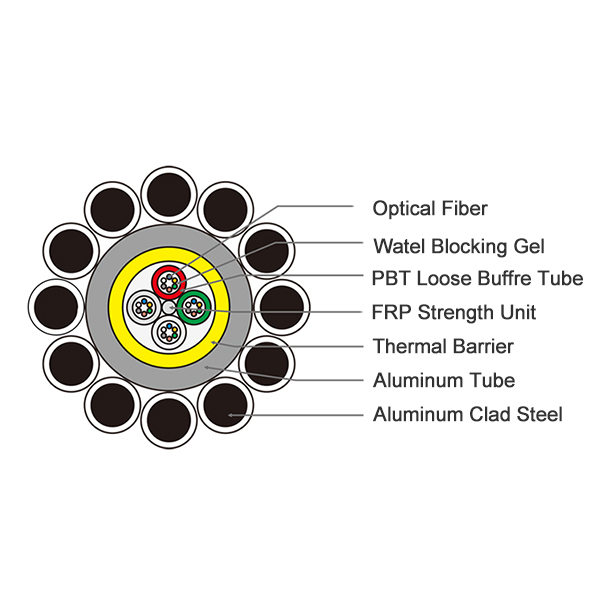

PBT Loose Tube Type Stranded Layer Type

Central Loose tube

Typical design for Double Layer of OPGW:

Item		Parameters
Loose tube	Material	PBT
Loose tube	Color	Full color spectrum
Filler	Material	PE
Filler	Color	Black
CSM	Material	FRP
Non-metal reinforced pieces	Material	Aramid yarn
Outer jacket	Material	PE
Outer jacket	Color	Black
Min. bending radius	Static	10 times cable diameter
Min. bending radius	Dynamic	20 times cable diameter
Tensile performance	Core	RTS (N)	MAT (N)	EDS (N)
	12	6000	2700	1500
	24	6000	2700	1500
	36	6000	2700	1500
	48	6000	2700	1500
	72	6000	2700	1500
	96	7200	3200	1700
	144	9800	4400	2400
Crush	Short term	1000N/100mm
Span(m)	100

Typical design for Three Layer of OPGW:

Item		Parameters
Loose tube	Material	PBT
Loose tube	Color	Full color spectrum
Filler	Material	PE
Filler	Color	Black
CSM	Material	FRP
Non-metal reinforced pieces	Material	Aramid yarn
Outer jacket	Material	PE
Outer jacket	Color	Black
Min. bending radius	Static	10 times cable diameter
Min. bending radius	Dynamic	20 times cable diameter
Tensile performance	Core	RTS (N)	MAT (N)	EDS (N)
	12	6000	2700	1500
	24	6000	2700	1500
	36	6000	2700	1500
	48	6000	2700	1500
	72	6000	2700	1500
	96	7200	3200	1700
	144	9800	4400	2400
Crush	Short term	1000N/100mm
Span(m)	100
