  • ADSS fiber optic cable (single jacket)

ADSS fiber optic cable (single jacket)

ADSS (6).jpg

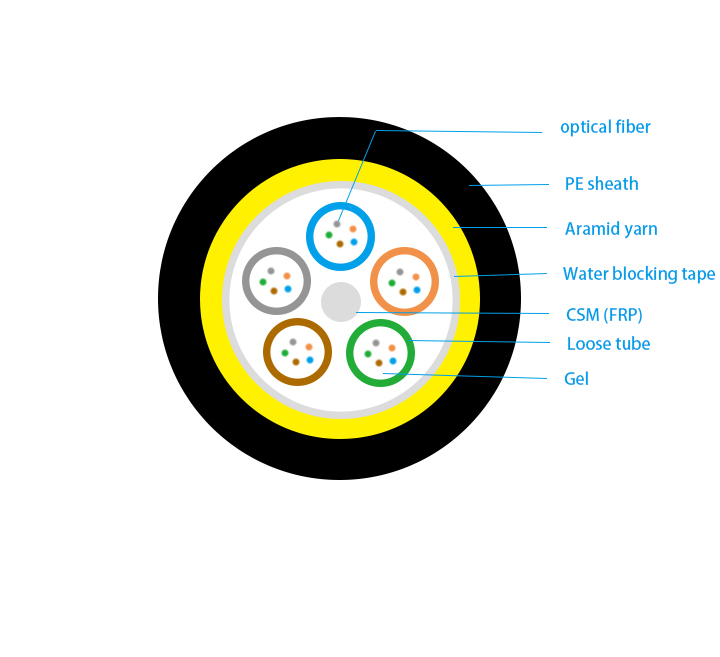

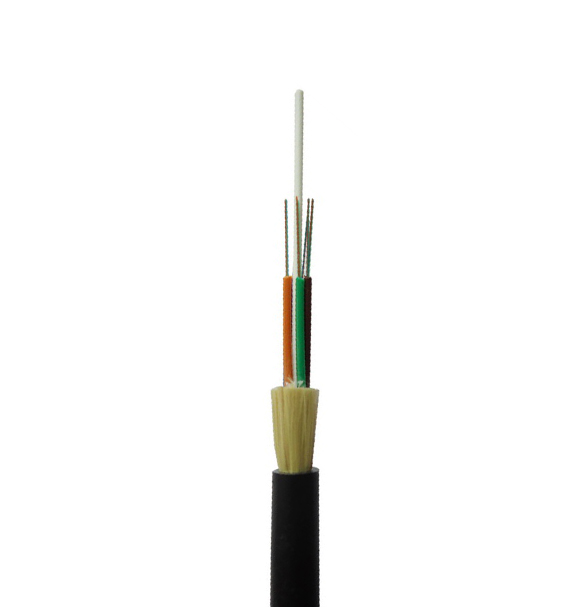

ADSS Optical Fiber Cable Characteristic

1.Cable be installed without shutting off the power;
2.Excellent AT performance.Maximum inductive at the operating point of AT sheath can reach 25KV;
3.Light weight and small diameter reducing the load caused by ice,wind,load on towers and backprops;
4.Large span lengths(Largest span is over 1000m)
5.Good performance of tensile strength and temperature;
6.Design life span is 30 years.



Dimensions of cable constructions


Fiber count

Structure

Fibers per tube

Loose tube diameter

(mm)

CSM diameter/pad   diameter

(mm)

Thickness of outer jacket

(mm)

Cable diameter(mm)

Cable weight

(kg/km)

12

1+5

12

2.0±0.1

1.8/1.8

1.5±0.1

10.3±0.5

76

24

1+5

12

2.0±0.1

1.8/1.8

1.5±0.1

10.3±0.5

76

36

1+5

12

2.0±0.1

1.8/1.8

1.5±0.1

10.3±0.5

77

48

1+5

12

2.0±0.1

1.8/1.8

1.5±0.1

10.3±0.5

78

72

1+6

12

2.0±0.1

2.4/2.4

1.5±0.1

10.9±0.5

91

96

1+8

12

2.0±0.1

2.8/3.9

1.5±0.1

12.3±0.5

116

144

1+12

12

2.0±0.1

4.1/6.6

1.5±0.1

15.0±0.5

182



Cable performance

Item

Parameters

Loose tube

 Material

PBT

 Color

Full color spectrum

Filler



 Material

PE

 Color

Black



CSM

 Material

FRP

Non-metal reinforced pieces

Material

Aramid yarn

Outer jacket

Material

PE

Color

Black

Min. bending radius

Static

10 times cable diameter

 Dynamic

20 times cable diameter

 Tensile performance

 Core

RTS (N)

MAT (N)

EDS (N)


12

6000

2700

1500


24

6000

2700

1500


36

6000

2700

1500


48

6000

2700

1500


72

6000

2700

1500


96

7200

3200

1700


144

9800

4400

2400

 Crush

Short term

1000N/100mm

Span(m)

100



Fiber type Parameter (G655 optional fiber type)

Item

 Unit

Specification

G. 652

Mode field diameter

1310nm

mm

9.2 ± 0.4

1550nm

mm

10.4 ± 0.8

Cladding diameter

mm

125.0 ± 1

Cladding non-circularity

%

£1.0

Core/cladding concentricity error

mm

£0.5

Coating diameter

mm

242 ± 7

Coating/cladding concentricity error

mm

£12

Cable cut-off wavelength

nm

£ 1260

Attenuation Coefficient

1310nm

dB/km

£0.36

1550nm

dB/km

£0.22

Proof stress level

kpsi

≥100

ITU-T G.652 (Other parameters meet standard ITU-T G.652)


Application
